Oxygen dedicated shut - off valve

Location:Home > Oxygen dedicated shut - off valve

Oxygen dedicated valve Stainless steel Oxygen valve JY41W

Date:[2016-10-19]    hits: Oxygen dedicated valve Stainless steel Oxygen valve JY41W

American Standard cut-off valve in the pipeline is mainly used for cutting, distribution and change the flow direction of the medium. American Standard cut-off valve is widely used in recent years, a new type of valve, which has the following advantages:

1. The fluid resistance is small, the resistance coefficient and the same length of the pipe section equal.

2. Simple structure, small size, light weight.

3. Close and reliable, the current valve sealing surface material widely used plastic, sealing, and in the vacuum system has also been widely used.

4. Easy to operate, open and close quickly, from full open to fully closed as long as the rotation 90 °, easy remote control.

5. Easy maintenance, gate valve structure is simple, the seals are generally active, the demolition of replacement are more convenient.

6. In the fully open or fully closed, the ball and seat sealing surface and medium isolation, the media through, it will not cause corrosion of the valve sealing surface.

7. Wide range of applications, from small to a few millimeters in diameter, large to a few meters, from high vacuum to high pressure can be applied, the ball rotated 90 degrees, in the import and export should be spherical all appear to cut off the flow.

1, open and close without friction. This feature completely solved the traditional [/ wiki] due to the friction between the sealing surface affect the sealing problem.

2, the top-loading structure. On the pipeline installed in the valve can be directly on-line inspection and maintenance, can effectively reduce the device parking, reduce costs.

3, single seat design. The elimination of the valve chamber medium due to abnormal boost the impact of the use of security issues.

4, low torque design. Special structural design of the stem, just with a small handle can easily open and close the valve.

5, wedge-shaped seal structure. Valve is provided by the mechanical stem force, the ball wedge pressure on the seat and sealed to the valve sealing performance from the pressure changes in the pipeline, in a variety of conditions have a reliable guarantee of sealing performance.

6, the sealing surface of the self-cleaning structure. When the ball away from the valve seat, the fluid in the pipeline along the ball sealing surface into a 360 ° uniform, not only eliminates the high-speed fluid on the seat of the local erosion, but also washed away the sealing surface of the aggregate, to achieve self-cleaning purposes .

Such valves should be installed horizontally on the pipe

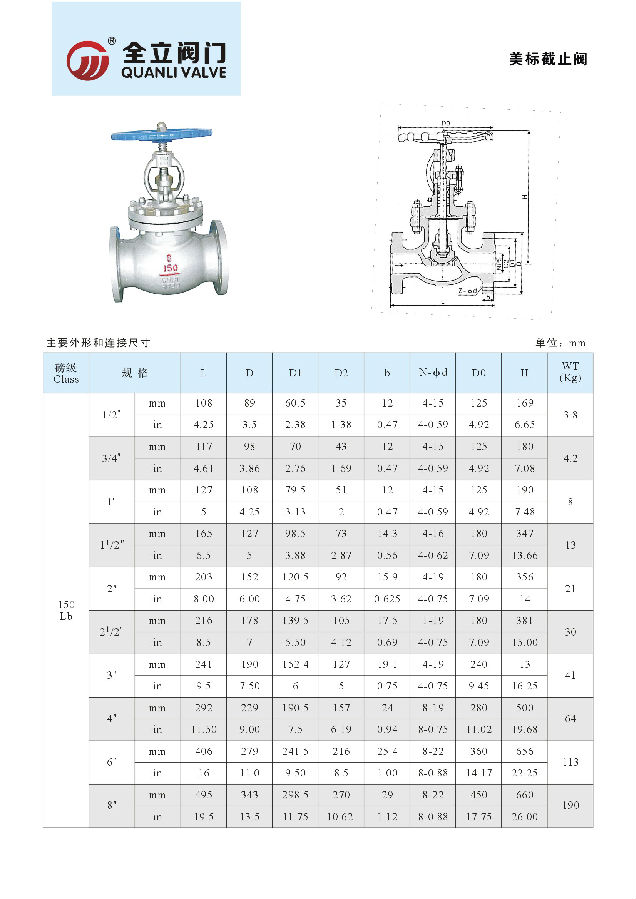

150Lb Connection dimensions and dimensions 150Lb External and connecting dimensions (mm)

NPS
Norminal diameter
UnitLDCGTn-ФWH
inmm
1/2〞15mm1088960.535124-15125169
in4.253.52.381.380.474-0.594.926.65
3/4〞20mm117987043124-15125180
in4.613.862.761.690.474-0.594.927.08
1〞25mm12710879.551124-15125190
in54.253.1320.474-0.594.927.48
11/2〞40mm16512798.57314.34-16180347
in6.553.882.880.564-0.627.0913.66
2〞50mm178152120.59215.94-19180365
in764.753.620.6254-0.757.0914
21/2〞65mm190178139.510517.54-19240381
in7.575.504.120.694-0.759.4515.00
3〞80mm203190152.412719.14-19280413
in87.5650.754-0.7511.0216.25
4〞100mm229229190.515723.98-19280500
in997.56.190.948-0.7511.0219.68
6〞150mm394279241.5216268-22360656
in15.511.009.508.51.028-0.8814.1422.25
8〞200mm457343298.5270298-22450660
in18.0013.5011.7510.621.128-0.8817.7526.00

Stainless steel American Standard cut - off valve test pressure 300LB  Test pressure 300LB

TypeMpaPSI
Shell test7.71125
Sealing test(WATER)5.8815
Sealing test(AIR)5-7 Bar

Test pressure  600LB

TypeMpaPSI
Shell test15.42225
Sealing test(WATER)5.81628
Sealing test(AIR)5-7 Bar

300Lb External and connecting dimensions (mm)

NPS
Norminal diameter
UnitLDTGCn-ФWH
inmm
1/2〞15mm-15295153566.54-15125190
in5.983.740.591.382.624-0.594.927.48
3/4〞20mm178117164382.54-19125212
in74.610.621.693.254-0.754.928.35
1〞25mm2031241851894-19160231
in84.90.7123.54-0.756.29.1
11/2〞40mm22915620.773114.54-22200391
in96.120.812.884.514-0.887.8712.43
2〞50mm26716522.3921278-19200406
in10.56.50.883.6258-0.757.8716.00
21/2〞65mm29219025.41051498-22240457
in11.507.514.125.878-0.889.4518.00
3〞80mm31821028.5127168.58-22280470
in12.508.25101256.628-0.8811.0218.50
4〞100mm35625431.81572008-22320590
in14.00101.256.197.888-0.8812.6022.30
6〞150mm44431836.621627012-22500711
in17.5012.51.448.510.6212-0.8819.6828.00
8〞200mm55938141.327033012-25500750
in22.00151.6210.6213.0012-119.6829.50

600Lb External and connecting dimensions (mm)

NPS
Norminal diameter
UnitLDTGCn-ФWH
inmm
1/2〞15mm-15295153566.54-15160285
in5.983.740.591.382.624-0.590.6211.22
3/4〞20mm178117.5164382.54-19160285
in74.160.621.693.254-0.750.6211.22
1〞25mm2031241851894-19160313
in84.90.7123.54-0.750.6212.32
11/2〞40mm2291562373114.54-22240365
in96.120.912.884.514-0.889.4514.17
2〞50mm26716525921278-19240444
in10.56.51.003.6258-0.759.4517.50
21/2〞65mm292190291051498-22240483
in11.507.51.124.125.878-0.889.4519
3〞80mm31821032127168.58-22280533
in12.508.2512.556.628-0.8811.2021
4〞100mm35627338.01572168-25360622
in14.0010.751.56.198.58-1.0014.1724.50
6〞150mm44435647.721629212-29500800
in17.50141.888.511.512-1.1419.6831.50
8〞200mm55941955.627034912-3255.927
in22.0016.502.1910.6213.7512-1.2521.6536.50
